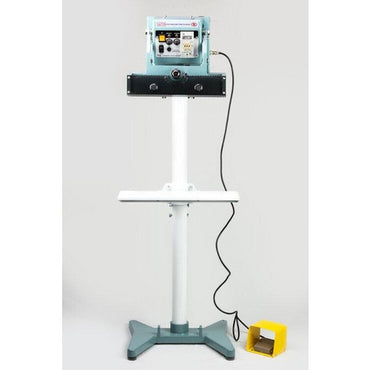

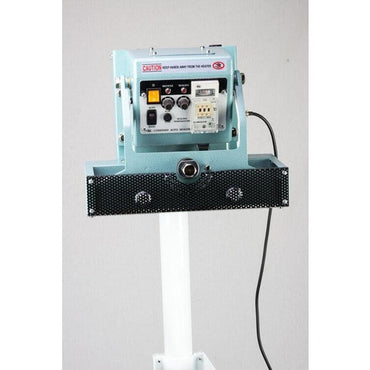

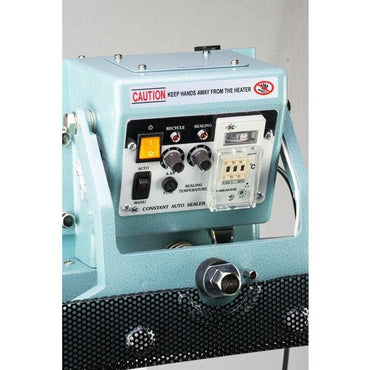

translation missing: en.collections.general.collection_label: Vertical Double Auto Constant Heat Foot Sealer
AIE (American International Electric INC.) is the leading manufacturer, developer and supplier of quality plastic bag and film sealing equipment worldwide. All sealers are manufactured in ISO-9001 Certified facilities.
Designed for applications that require vertical sealing such as the packaging of powders and liquids as well as very heavy bags that are difficult to lift. It can be combined with a conveyor for filling. Comes with an extra long stand for added flexibility.
What Our Customers Are Saying
Let customers speak for us
Bag Dimension Calculator
Need measurements for:
LINING BOXES & BINS
1. Measure the width, depth and height of the box to be lined. The depth should be the shorter side.
2. To determine the Width (W) of the bag, add 1" to the width of the box.
3. To determine the Depth (D) of the bag, add 1" to the depth of the box.
4. The Length (L) of the bag is determined by adding the depth to the height of the box plus 6" to allow coverage of the box contents.
Example: If the box size is 18"(wide) x 12"(deep) x 14"(high), the bag dimensions are as follows: Width (W) is 19" Depth (D) is 13" Length (L) is 32"
PALLET COVERS
1. Measure the width, depth and height of the pallet to be covered. The depth should be the shorter side.
2. To determine the Width (W) of the cover, add 1"-2" to the width of the pallet.
3. To determine the Depth (D) of the cover, add 1"-2" to the depth of the pallet.
4. The Length (L) of the cover is determined by adding 1/2 the depth to the height.
Example: If the pallet size is 40"(wide) x 36"(deep) x 50"(high), the cover dimensions are as follows: Width (W) is 42" Depth (D) is 38" Length (L) is 68"
LINING ROUND CONTAINERS
1. Measure the diameter and height of the container to be lined.
2. To determine the Circumference (C) of the container, multiply the diameter by 3.14.
3. To determine the Width (W) of the bag, divide the Circumference (C) by 2. Add 1" for a looser fit.
4. To determine the Length (L) of the bag, add the diameter to the height. Add 5" for overhang..
Example: If the container size is 12"(diameter) x 30"(height), the bag dimensions are as follows: Width (W) is 20" Length (L) is 47"
LINING GARBAGE CONTAINERS
1. Measure the width, depth and height of the container to be lined. The depth should be the shorter side.
2. To determine the Width (W) of the bag, add the width and depth. Add 2" for a looser fit.
3. To determine the Length (L) of the bag, add 1/2 the depth to the height. Add 5" for overhang.
Example: If the container size is 14"(wide) x 10"(deep) x 32"(high), the bag dimensions are as follows: Width (W) is 26" Length (L) is 42"
POLY TUBING
1. Measure the width of your product.
2. To determine the Circumference (C) of your product, multiply the width by 3.14.
3. To determine the Width (W) of the tubing, divide the Circumference (C) by 2. Add 1" for a looser fit.
Example: If the product size has a 12"(diameter), the tubing width dimensions is as follows: Width (W) is 20"
Gusseted Bags
1. Measure the width, depth and height of the product. The depth should be the shorter side.
2. To determine the Width (W) of the bag, add 1" to the width of the product.
3. To determine the Depth (D) of the bag, add 1" to the depth of the product.
4. The Length (L) of the bag is determined by adding the depth to the height of the product plus 6" to allow coverage of the contents.
Example: If the product size is 18"(wide) x 12"(deep) x 14"(high), the bag dimensions are as follows: Width (W) is 19" Depth (D) is 13" Length (L) is 32"
FLAT POLY BAGS
1. Measure the width, depth and height of the product. The depth should be the shorter side.
2. To determine the Width (W) of the bag, add the width and depth. Add 2" for a looser fit.
3. To determine the Length (L) of the bag, add 1/2 the depth to the height. Add 5" for overhang.
Example: If the product size is 14"(wide) x 10"(deep) x 32"(high), the bag dimensions are as follows: Width (W) is 26" Length (L) is 42"
